NetFlow2SQL Collector comprises two functional modules: |
|
|
|
|
- User interface module,
- Windows service. |
|
|
|
The user interface module runs as standard Windows application and allows to |
|
|
|
|
- install, uninstall, start, and stop Windows service,
- create, delete and edit router server list entries,
- configure NetFlow2SQL Collector by changing options. |
|
|
|

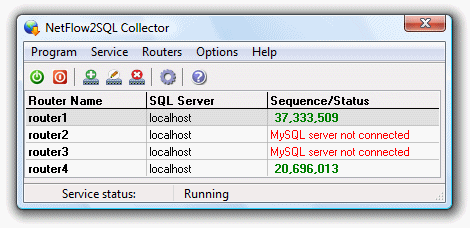

The main interface window shows a router list with the columns: Router Name, SQL Server, and Sequence/Status.
The last column indicates a flow sequence counter, or a current status:
The status bar of the user interface module indicates the Windows service status: Running, Stopped, or Not installed.

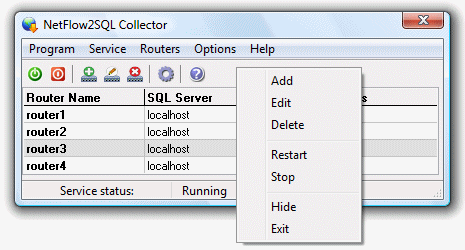

Besides the main menu and the toolbar buttons there is the pop-up menu which is available clicking mouse right button.
 |
|
|
|
|
|
 |
|
|
|
|
|
